W-05-3SAC-MB	W-05-3SAC-AB
0.5 Ton Short Drum Winch with Manual Brake	0.5 Ton Short Drum Winch with Auto Brake

The 4-piston motor allows for controlled maneuvering of the load. In addition, the motor can be rotated, allowing the W-05-3 series air winches to be ceiling or wall mounted for unique applications .

The W-05-3 series have a 3-piece valve assembly construction. This allows to repair the throttle valve/ rotary valve independently of each other, and without removing the entire motor from the frame assembly. This is unique feature compared with other models available in the market.

The W-05-3 series Baby Air Winch is capable of lifting 500 kgs. This cast aluminium, lightweight, compact air winch is designed for low air consumption and high efficiency. This air winch has ideal applications in.

Petrochemical	Marine	Oil Platform Work
Gasoline Tank	Farm Construction	Water Tower Erection

W-05-3SAC-MB (Short Drum Air Winch Manual Brake)	SPECIFICATIONS
	Weight Short Drum Manual Brake Short Drum Auto Brake Capacity 0.5 Ton 0.5 Ton Line Speed at Capacity 19 m/min 19 m/min Cable Capacity 45 meter of 8 mm Weight w/o Rope 55 kg 59 kg Air Inlet Thread 3/4" Note:This equipment is not used for lifting, transporting people or lifting or supporting loads over people

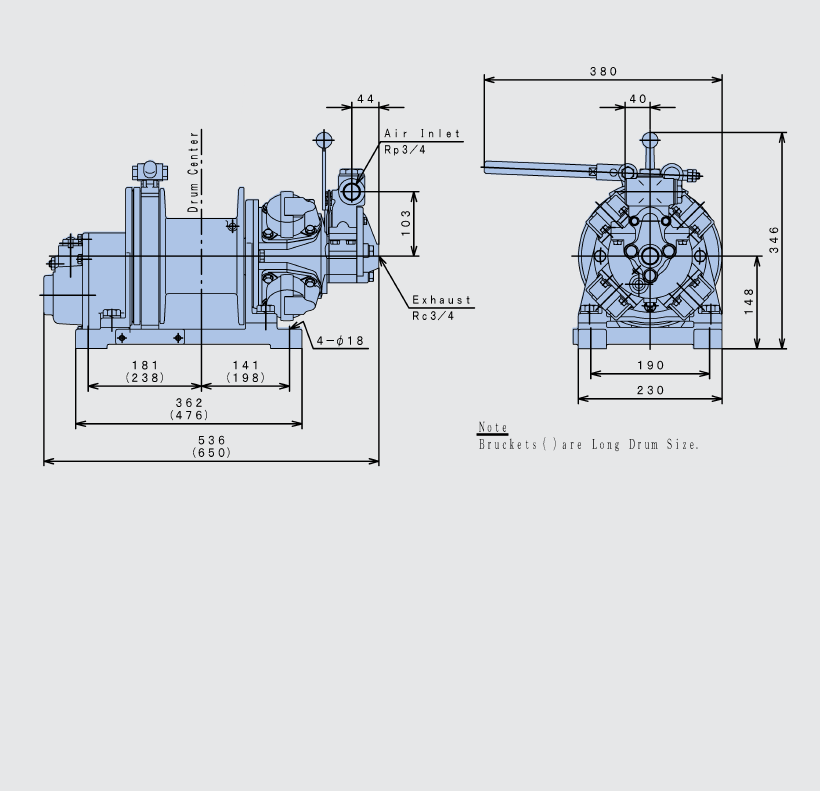

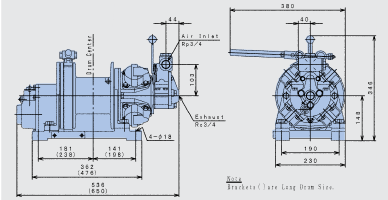

PERFORMANCE	DIMENSION
	W-05-3SAC-MB

W-05-3LAC-MB	W-05-3LAC-AB
0.5 Ton Long Drum Winch with Manual Brake	0.5 Ton Long Drum Winch with Auto Brake

The 4-piston motor can be rotated, allowing for ceiling or wall mounting applications and for controlled maneuvering of the load.

The W-05-3 series features a 3-piece valve assembly. This enables repairing the throttle valve or rotary valve independently of each other. This can be done without removing the entire motor from the frame assembly unlike competitive units on the market.

The W-05-3 series Baby Air Winch is capable of lifting 500 kgs. This compact Air winch (Tugger) is designed for low air consumption and high efficiency. The W-05-3 series air winch features cast aluminium bodies. This air winch has ideal applications in .

Petrochemical	Marine	Oil Platform Work
Gasoline Tank	Farm Construction	Water Tower Erection

W-05-3LAC-MB (Long Drum Air Winch Auto Brake)	SPECIFICATIONS
Note:This image is of short drum.	Weight Long Drum Manual Brake Long Drum Auto Brake Capacity 0.5 Ton 0.5 Ton Line Speed at Capacity 19 m/min 19 m/min Cable Capacity 90 meter of 8 mm Weight w/o Rope 60 kg 64 kg Air Inlet Thread 3/4" Note:This equipment is not used for lifting, transporting people or lifting or supporting loads over people
PERFORMANCE	DIMENSION

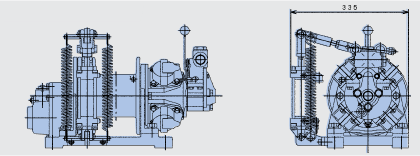

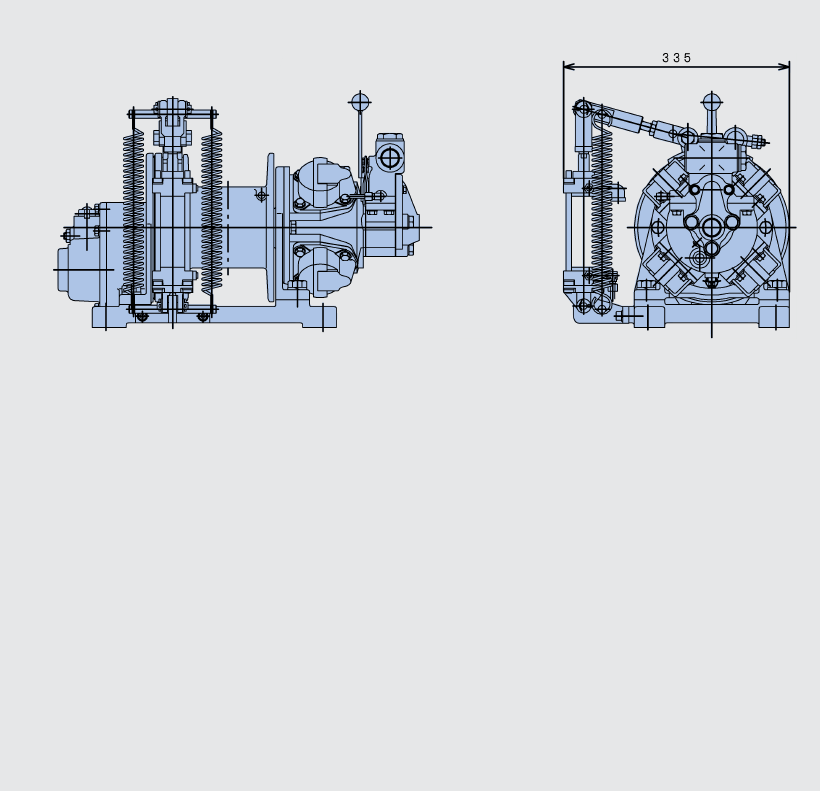

	W-05-3SAC-AB
