SAN-EI SEIKI is proud to manufacture World-Class Air Hoists with total manufacturing from Air Motors and have total Japanese Quality Control. Our Air Hoists are popular for Precision, Rigidity and High Durability.
Features
-
Improved Working Efficiency:
-
Easy Handling:
-
Precision Working:
-
Easy Installation:
-
High Durability for Working in high Temperature and Humidity:
-
Effective Braking:
-
Different Capacity Models:
Especially with repeat lifting application. SAN-EI Air Hoists are high speed and don’t overheat. Reduces operator fatigue.
Compact design allows easy handling.Highly rigid construction.
SAN-EI Air Hoist use continuously variable speed controls that allows smooth, continuous operation for precise parts positioning in Assembly Lines and also on fixtures. Smooth push button pendant operation.
SAN-EI Air Hoist is ready to work as soon as you connect the air hose. No electrical power is required.
Designed for usage in high temperature environments,Chemical fumes, inflammable gas.
Durable pneumatic brake allows safe stopping.
Ranging from 125 Kgs to 20 Tons.
Models
Specifications
| Model | Rated Load (kg) |
Stroke (m) | Air Pressure (MPa) | Lifting Speed (m/min) | Air Consumption (N-m3/min) |
Chain Fall (size×fall) |
Weight (kg) |
| VLX25LP | 250 | 3 | 0.6 | 18.0 | 1.6 | 6.3 x 1 | 23 |
| VLX50LP | 500 | 3 | 0.6 | 12.0 | 1.6 | 6.3 x 1 | 23 |
| VLX100LP | 1,000 | 3 | 0.6 | 6.0 | 1.6 | 6.3 x 2 | 33 |
| VMX100LP | 1,000 | 3 | 0.6 | 5.0 | 1.6 | 7.1 x 1 | 40 |
| VMX200LP | 2,000 | 3 | 0.6 | 2.5 | 1.6 | 7.1 x 2 | 45 |
| VHX300LP | 3,000 | 3 | 0.6 | 3.5 | 3.1 | 12.5 x 1 | 110 |
| VHX500LP | 5,000 | 3 | 0.6 | 1.9 | 3.1 | 11.2 x 2 | 115 |
| GLX10LP | 10,000 | 3 | 0.5 | 1.6 | 6.2 | 16 x 2 | 260 |
| GLX15LP | 15,000 | 3 | 0.5 | 1.2 | 6.2 | 16 x 3 | 310 |
| GLX20LP | 20,000 | 3 | 0.5 | 0.8 | 6.2 | 16 x 4 | 330 |

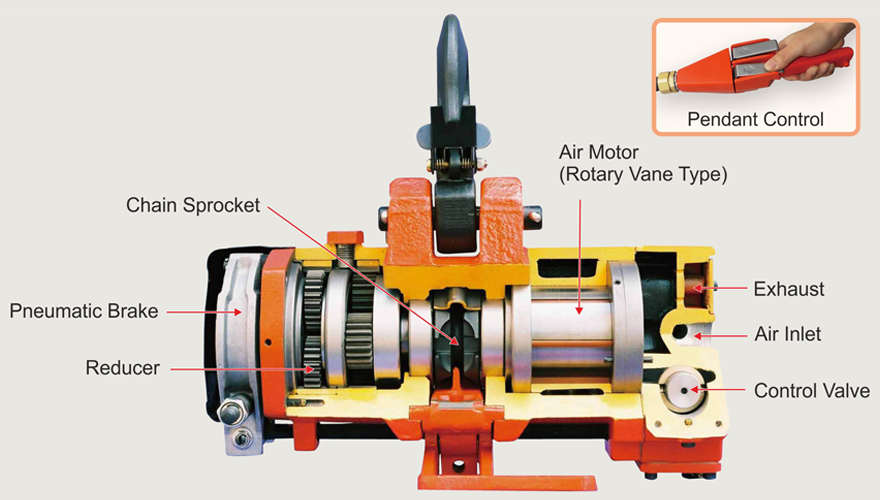

Structure Of Air Hoist
SAN-EI SEIKI’s popular rotary vane motor incorporated into our Air Hoist. The vanes cause the rotor to rotate when exposed to air pressure thus enabling the motor to raise and lower the load. Our vane motors are precise, rigid in construction that increases durability of our Air Hoist.
