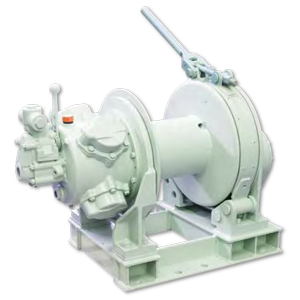

W-30-36SAC-MB

W-30-36SAC-AB

3 Ton Short Drum Winch with Manual Brake 3 Ton Short Drum Winch with Auto Brake

The San-Ei Seiki W-3036 Series Air Winches are available in Short/ Long Drum and Manual/ Auto Brake constructions. They are considered as work horse of the San-Ei air winch series and have large 4-piston air motor with rugged construction.

San-Ei Seiki Air Winches have extra heavy duty construction and have superior performance over other brands. They are ideal for long term usage/ rental applications in various weather conditions.

This air winch (tugger) has ideal applications in

  • Petrochemical
  • Marine
  • Oil Platform Work
  • Gasoline Tank
  • Farm Construction
  • Water Tower Erection

  • W-30-36SAC-MB (Short Drum Air Winch With Manual Brake) W-30-36SAC-AB (Short Drum Air Winch With Auto Brake)


    SPECIFICATIONS

    PERFORMANCE

    Weight Short Drum
    Manual Brake
    Short Drum
    Auto Brake
    Capacity 3 Ton 3 Ton
    Line Speed at Capacity 19 m/min 19 m/min
    Cable Capacity 160 meter of 16 mm
    Weight w/o Rope 257 kg 267 kg
    Air Inlet Thread 1-1/4"


    Note:This equipment is not used for lifting, transporting people or lifting or supporting loads over people

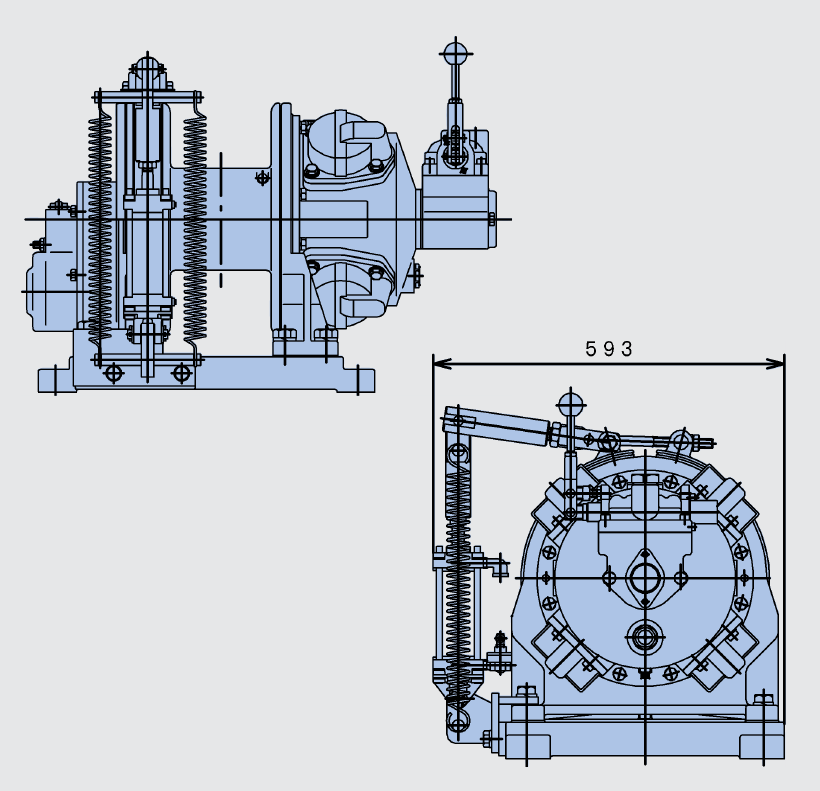

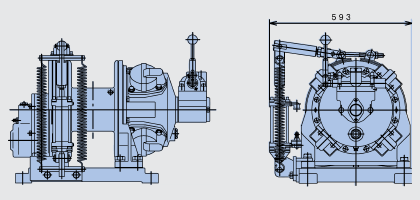

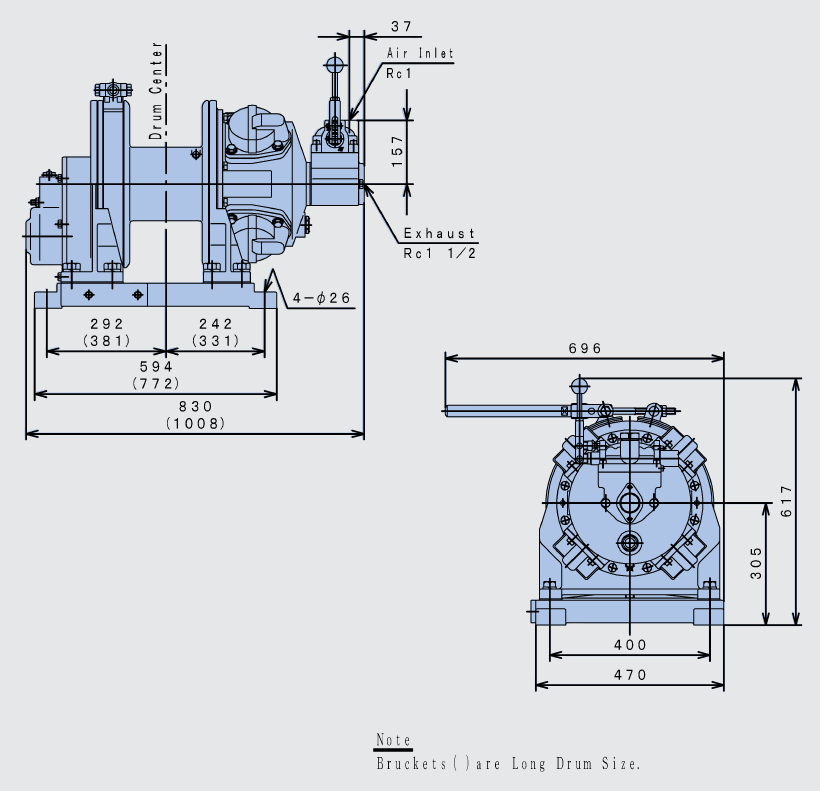

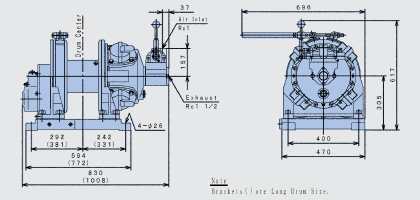

    DIMENSION

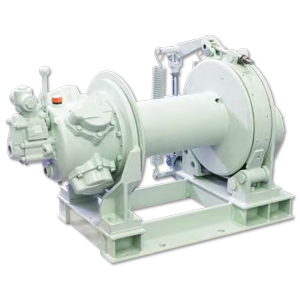

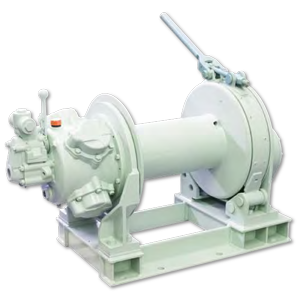

    W-30-36LAC-MB

    W-30-36LA-AB

    3 Ton Long Drum Winch with Manual Brake 3 Ton Long Drum Winch with Auto Brake

    The San-Ei Seiki W-3036 Series Air Winches are available in Short/ Long Drum and Manual/ Auto Brake constructions. They are considered as work horse of the San-Ei air winch series and have large 4-piston air motor with rugged construction .

    San-Ei Seiki Air Winches have extra heavy duty construction and have superior performance over other brands. These air winches are good return on investment and are ideal for long term usage/ rental applications in various weather conditions.

    This air winch (tugger) has ideal applications in

  • Petrochemical
  • Marine
  • Oil Platform Work
  • Gasoline Tank
  • Farm Construction
  • Water Tower Erection

  • W-30-36LAC-MB (Long Drum Air Winch With Manual Brake) W-30-36LAC-AB (Long Drum Air Winch With Auto Brake)


    SPECIFICATIONS

    PERFORMANCE

    Weight Long Drum
    Manual Brake
    Long Drum
    Auto Brake
    Capacity 3 Ton 3 Ton
    Line Speed at Capacity 19 m/min 19 m/min
    Cable Capacity 320 meter of 16 mm
    Weight w/o Rope 276 kg 288 kg
    Air Inlet Thread 1-1/4"


    Note:This equipment is not used for lifting, transporting people or lifting or supporting loads over people

    DIMENSION
