Air Motor >> Rotary Vane Series

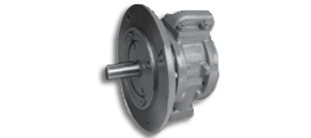

VA Series - Rotary Vane Type |
|
|
Rotor is embedded in casing in an eccentric way. The vanes are inserted in rotor which slides in circumferential direction. Air pressure is applied at bottom of vanes so that perfect sealing at tip of vane and casing is occurred. Compressed air from air supply pushes the vanes up and rotates the motor. Exhaust air after operation is passed through exhaust port. |
|
Features
| 1. | Free from Overheat & Burnout | 2. | Variable Speed |
|
Even if overloaded motor does not stop and have no brake down. |
Valve design allows precision speed control. |
||
| 3. | Safe in Hazardous Working Environment | 4. | High Durability |
No spark, No hydraulic fluid design allows safe working in extreme hazardous work conditions |
Motor vanes are made of the durable material selected carefully and manufactured under special procedure |
||
| 5. | Substitute for Electric Motors | 6. | Unidirectional Motor |
The motor mounting flange and output shaft dimensions are same as similar rated electrical motors |
VA Series is unidirectional motor and have constant rated speed1800 rpm like electrical motors |
||
| 7. | Flexible Operation | 8. | Flexible Mountings |
The motor mounting flange and output shaft Motor rotation direction can be changed by rearranging the components |
Motor can also be used in vertical mounting applications, Motors are available in face, flange and base mountings |
||
Precautionery Measures

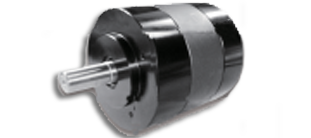

VF Series - Rotary Vane Type |
|
|
Rotor is embedded in casing in an eccentric way. The vanes are inserted in rotor which slides in circumferential direction. Air pressure is applied at bottom of vanes so that perfect sealing at tip of vane and casing is occurred. Compressed air from air supply pushes the vanes up and rotates the motor. Air which has completed its operation is emitted out from primary exhaust outlet and remaining air is emitted from secondary exhaust outlet. |
|
Features
| 1. | Free from Overheat & Burnout | 2. | Variable Speed |
|
Even if overloaded motor does not stop and have no brake down. |
Valve design allows precision speed control and available from medium to high speed range |
||
| 3. | Safe in Hazardous Working Environment | 4. | High Durability |
|
No spark, No hydraulic fluid design allows safe working in extreme hazardous work conditions |
Motor vanes are made of the durable material selected carefully and manufactured under special treatment that avoids burning, cracks and abnormal wear |
||
| 5. | Bi-directional Motor | 6. | Compact Design, Minimum Maintenance |
VF Series is bidirectional motor |
Compact simple design and lightweight construction allows wide range of applications. The design requires minimum lubrication. |
||
| 7. | Flexible Mountings | ||
Motors are available in face, flange and base mountings |
|||
